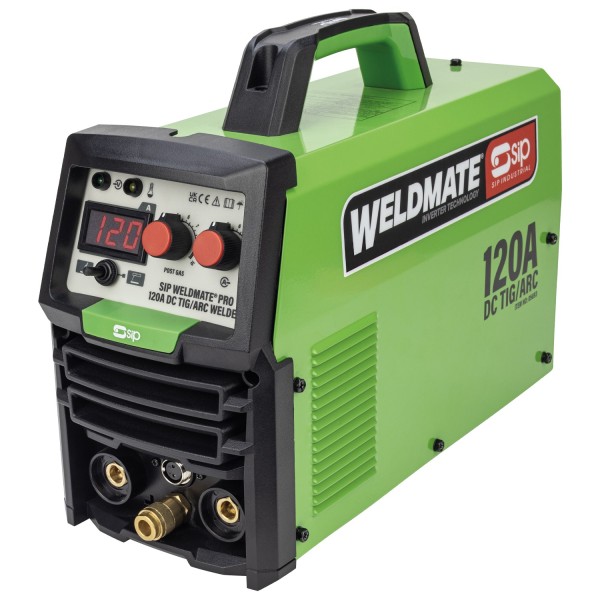

SIP WELDMATE® PRO 120A DC TIG/ARC Inverter Welder (05693S)

The SIP WELDMATE® PRO 120A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in fabrication workshops, sheet metal applications and home workshops.

Powerful, compact and lightweight, this inverter welder also features high frequency start-up for easy arc striking, which helps to achieve cleaner and higher quality welds by avoiding electrode contact with the workpiece when initiating the arc. Also operates from a 230v (13A) supply for added flexibility.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

KEY FEATURES:

• Dual process TIG/ARC DC welder for greater versatility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Infinitely variable dials offer smoother stepless output and setting adjustment
• Post gas setting for prevent oxidation for a clean and higher quality weld
• LED display for indicating welding outputs and function settings
• Compact and lightweight design for easy work area movement

Technical Information:

• ITEM NO. 05693
• Input Supply: 230v (13A)
• Welding Process: TIG MMA
• Output Current: 10A - 120A 10A - 100A
• Output Voltage: 10.4v - 14.8v: 70v DC Open Circuit Volts 20.4v - 24v: 70v DC Open Circuit Volts
• Duty Cycle @ 20°C: 120A @ 30% 100A @ 30%
• Welding Material Thickness: 0.5mm - 5mm (mild steel)
• Protection / Insulation F
• Net Weight: 7.2kg
• Gross Weight: 8.9kg
• Product Dimensions: 310(H) x 150(W) x 370mm(D)
• Packaged Dimensions: 270(H) x 295(W) x 440mm(D)
