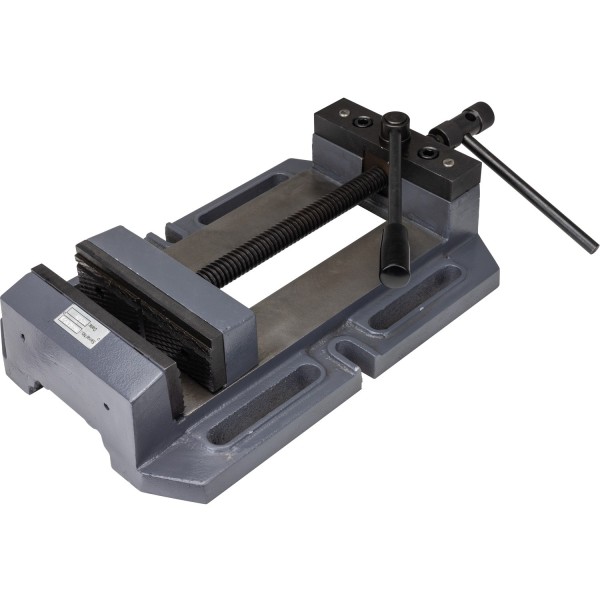

SIP 10" Quick Lock Machine Vice (01731S)

The SIP 10" Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.

It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES:

• Heavy-duty 10" machine vice with grey cast iron body and tempered steel jaws
• Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
• Boosts efficiency for set-up and changeover in busy production environments
• Slotted base allows secure fixing to the drill press table for added stability
• Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
• Perfect for use in professional metalwork and fabrication workshops

Technical Information:

• ITEM NO. 01731
• Jaw Width: 7" (180mm)
• Jaw Opening: 10" (260mm)
• Jaw Depth: 2.16" (55mm)
• Clamping Force: 25kN
• Vice Height: 3.89" (99mm)
• Base Type: Fixed
• Base Size: 21" (535mm) x 13.25" (335mm)
• Composition: Grey cast iron (body), quenched/tempered structural steel (jaws)
• Mounting Hole Size: 15mm
• Accuracy / Parallelism: 0.05mm / 100mm
• Net Weight: 32kg
• Gross Weight: 43kg
• Product Dimensions: 335(H) x 535(W) x 135mm(D)
• Packaged Dimensions: 320(H) x 540(W) x 160mm(D)
