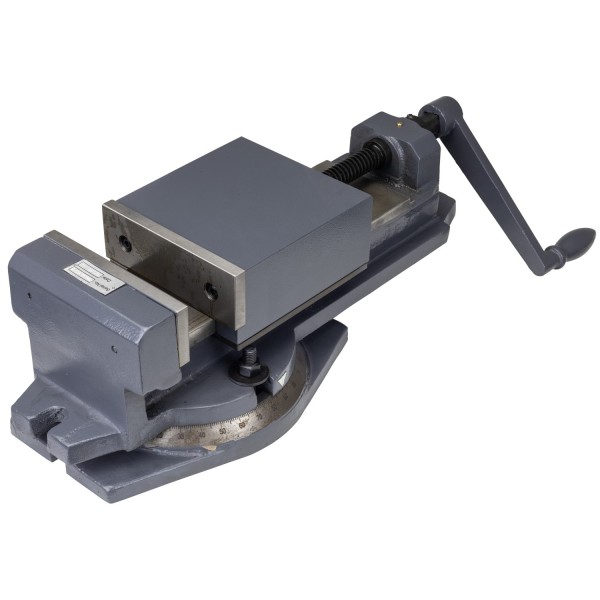

SIP 6" Swivel Machine Vice (01729S)

The SIP 6" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.

Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES:

• Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws
• Swivel base allows 0° to 360° rotation without unclamping the workpiece
• Adjustable design reduces set-up time, maintains accuracy and improves access
• Angle gauge for precise set-up for accuracy in complex and repetitive machining
• Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
• Perfect for use in professional metalwork and fabrication workshops

Technical Information:

• ITEM NO. 01729
• Jaw Width: 6" (152mm)
• Jaw Opening: 6" (152mm)
• Jaw Depth: 2" (51mm)
• Clamping Force: 25kN
• Vice Height: 6" (152mm)
• Base Type: Swivel
• Base Size: 11.5" (292mm) x 8.4" (214mm)
• Composition: Grey cast iron (body), hardened tool steel (jaws)
• Mounting Hole Size: 18mm
• Accuracy / Parallelism: 0.05mm / 100mm
• Net Weight: 40kg
• Gross Weight: 41kg
• Product Dimensions: 250(H) x 620(W) x 160mm(D)
• Packaged Dimensions: 260(H) x 440(W) x 220mm(D)
