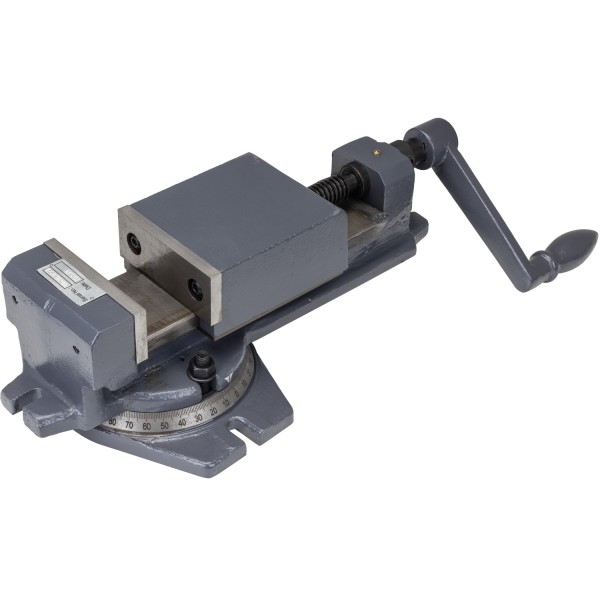

SIP 4" Swivel Machine Vice (01728S)

The SIP 4" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.

Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES:

• Heavy-duty 4" machine vice with grey cast iron body and tempered steel jaws
• Swivel base allows 0° to 360° rotation without unclamping the workpiece
• Adjustable design reduces set-up time, maintains accuracy and improves access
• Angle gauge for precise set-up for accuracy in complex or repetitive machining
• Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
• Perfect for use in professional metalwork and fabrication workshops

Technical Information:

• ITEM NO. 01728
• Jaw Width: 4" (101mm)
• Jaw Opening: 4" (101mm)
• Jaw Depth: 1.5" (38mm)
• Clamping Force: 15kN
• Vice Height: 4.56" (116mm)
• Base Type: Swivel
• Base Size: 7.75" (197mm) x 5.75" (146mm)
• Composition: Grey cast iron (body), quenched/tempered structural steel (jaws)
• Mounting Hole Size: 13mm
• Accuracy / Parallelism: 0.05mm / 100mm
• Net Weight: 15kg
• Gross Weight: 16kg
• Product Dimensions: 170(H) x 490(W) x 115mm(D)
• Packaged Dimensions: 180(H) x 430(W) x 160mm(D)
