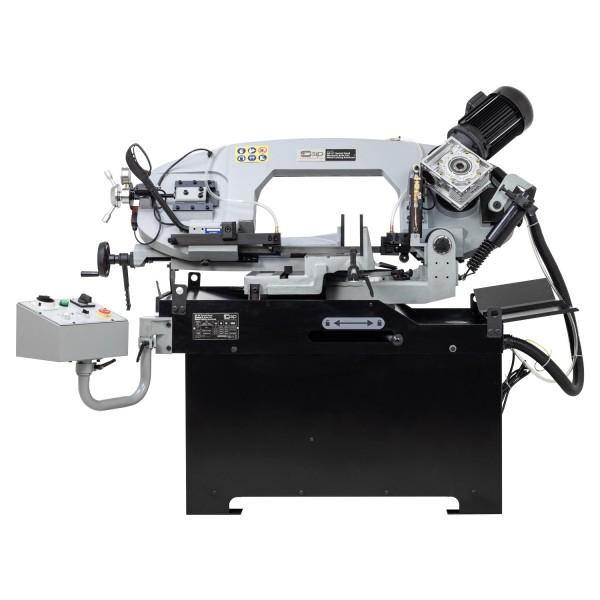

SIP 15" Swivel Manual & Auto-Cut Metal Bandsaw (01530S)

The SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw is a powerful and accurate auto-cutting bandsaw ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

KEY FEATURES:

• Dual swivel head function
• Two-speed motor (1.1kW - 1.5kW)
• Direct drive motor gearbox transmission
• Semi-automatic and manual cut-down functions
• Heavy-duty cast iron swivel bow head
• Adjustable cast iron vice
• Enhanced safety features

Technical Information:

• ITEM NO. 01530
• Input Supply: 400v 3-PHASE
• Motor Power: 1.5kW (2hp)
• Transmission: 2-Speed Direct Drive Gearbox
• Blade Speed Range: 34mtr/min / 68mtr/min
• Blade Size: 3160mm x 27mm x 0.9mm
• Coolant System: Yes
• Angle Range: 45°, 30°, 15° (left), 0°
• 15°, 30°, 45°, 60° (right)
• Cutting Capacity @ 0°: 270mm 260mm 220mm x 370mm
• Cutting Capacity @ 45°: 240mm 180mm 160mm x 240mm
• Cutting Capacity @ 60°: 160mm 100mm N/A
• Cutting Capacity @ 45° (L): 210mm 180mm 150mm x 180mm
• Net Weight: 365.00kg
• Gross Weight: 415.00kg
• Product Dimensions: 1535(H) x 800(W) x 1580mm(D)
• Packaged Dimensions: 1770(H) x 765(W) x 1120mm(D)
