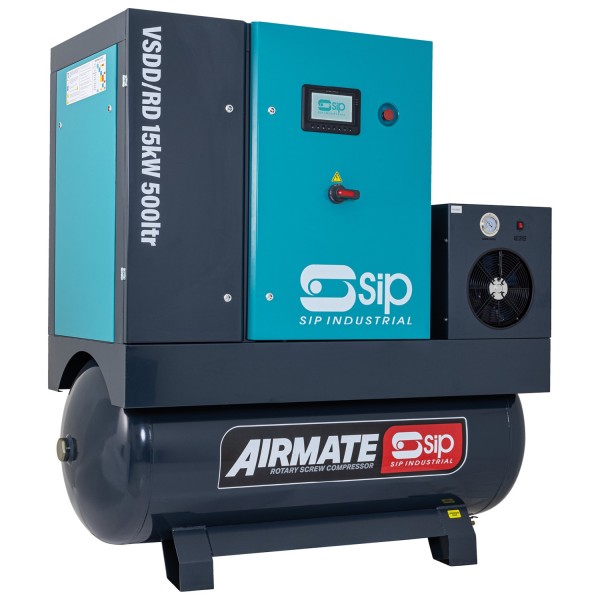

SIP VSDD/RDF 15kW 8bar 500ltr Screw Compressor (08274S)

The SIP VSDD/RDF 15kW 8bar 500ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor with integrated refrigeration dryer and filter. This 4th generation compressor is designed for continuous use applications or where multiple operators require compressed air at one time.

With a motor output of 15kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 500ltr receiver tank.

KEY FEATURES:

• Direct drive transmission for improved power transfer
• Variable speed 15kW motor delivers even power distribution
• Integrated refrigeration dryer reduces moisture from the air
• Air filtration system ensures 2-4-2 ISO 8573-1 air purification
• Heavy-duty silenced cabinet ensures reduced noise operation
• All-in-one design minimises lost work area space

Technical Information:

• ITEM NO. 08276
• Input Supply 400v (32A)
• Rated Input: 14kW
• Motor Power: 11kW (15hp)
• IE4 Motor: Yes
• Max. Pressure: 145psi (10bar)
• Free Air Delivery (FAD): 50CFM (1415ltr/min)
• Receiver Size: 500ltr
• Cooling Type: Fan Cooled
• Transmission Type: Direct Drive
• Start-Up Mode: Inverter Soft Start
• Refrigerated Dryer: Yes
• Outlet Connector: 3/4" BSPP
• Noise Level: 62dB(A)
• Net Weight: 510.00kg
• Gross Weight:
• Product Dimensions: 1850(H) x 820(W) x 1880mm(D)
