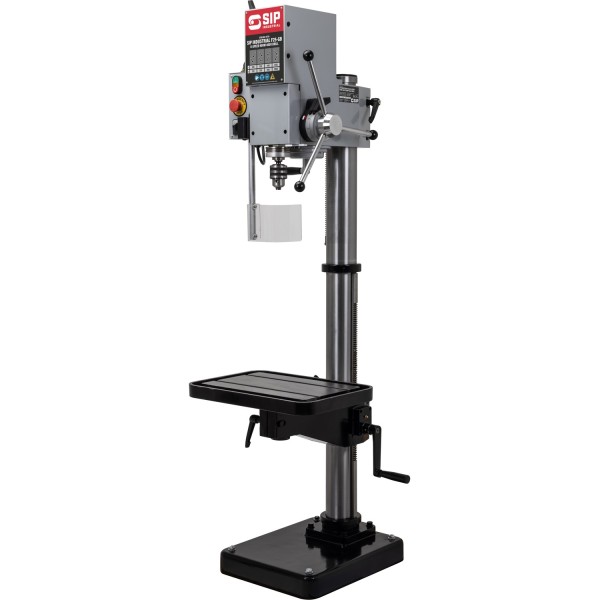

SIP F25-GB 8-Speed 900w Floor Pillar Drill (01719)

The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent 105rpm - 2900rpm spindle speed for powerful and precise drilling up to max. ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.

A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.

KEY FEATURES:

• 8-speed gear drive transmission with wide 105-2900rpm speed range
• Easy-to-operate headstock levers for precise spindle speed setting
• High torque output for consistent drilling power and max. ⌀ 25mm
• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Large drill table with adjustable height and rotation for greater versatility
• Heavy baseplate and central column to minimise vibration for stable drilling

Technical Information:

• ITEM NO. 01719
• Input Supply: 400v (16A)
• Motor Power: 900w
• No. of Speeds: 8 speeds
• Speed Range: 105rpm - 2900rpm
• Max. Drilling Capacity: 25mm
• Spindle Taper: MT3
• Table Size: 450mm x 320mm
• Base Size: 405mm x 390mm
• Column Diameter ⌀ 100mm
• Swing: 608mm
• Height: 1508mm
• Spindle Travel: 125mm
• Collar Diameter: ⌀ 130mm
• Max. Distance: 905mm (spindle to table)
• Net Weight: 190kg
• Gross Weight: 235kg
• Product Dimensions: 1508(H) x 560(W) x 570mm(D)
• Packaged Dimensions: 710(H) x 560(W) x 1670mm(D)
