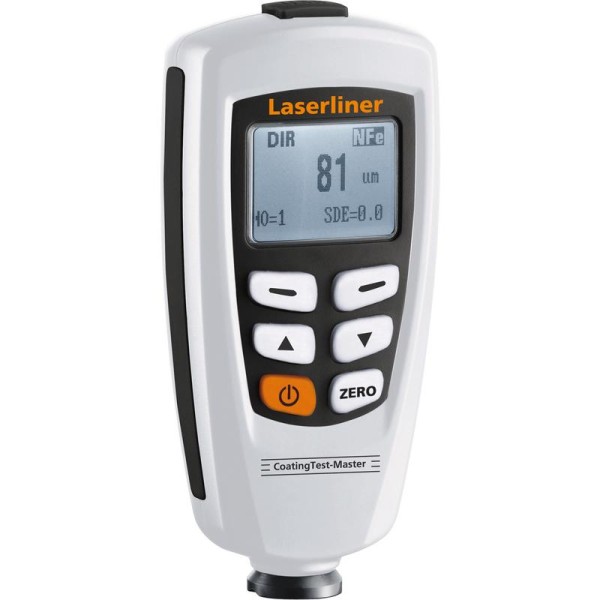

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device (32005)

Product Description:

This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.

• Point precise coating thickness measurement based on induction and eddy current principle
• Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
• Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
• Comprehensive data backup due to internal memory for 400 measured values
• Increased measuring accuracy due to one-point and two-point calibration
• USB interface for analysis on PC
• Min/Max/AVG display
• Easy-to-read display
• Supplied with USB cable, batteries and carrying case

Specifications:

• Coating thickness Yes
• Data transfer Yes
• Ferrous and non-ferrous Yes
• Single and continuous measurement Yes
• Mean value Yes
• Standard deviation Yes
• Zero adjustment Yes
• User calibration Yes
• Measured Variable Coating thickness
• Coating Thickness Measuring Range 0 … 1250 µm
• Sensor Type Magnetic-inductive (Fe), eddy current (NFe)
• Port USB
• Memory 80 measurements / mode
• Power Supply 2 x 1.5V LR03 (AAA)
• Dimensions (W x H x D) 23 mm x 110 mm x 50 mm
• Weight 116 g
