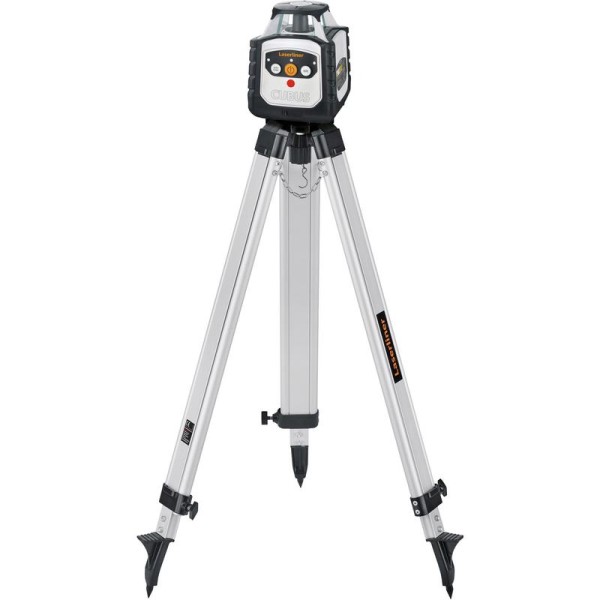

Laserliner 052.205A Cubus 210 S Set Rotary Laser Kit, 1500mm (32170)

Product Description:

This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes. A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.

• Exact horizontal and vertical alignment of objects
• Long range, ideal for excavation work
• The 90° reference beam is provided to plumb and align partition walls
• Reliable measurement through automatic power off with ADS tilt
• Time-saving fully automatic alignment by means of automatic sensor
• Long operating life due to powerful HighCapacityPack with lithium-ion technology
• Extremely simple operation for practical use
• Manual alignment of slopes
• Laser modes: spot, scan, rotary and hand receiver mode

Specifications:

• Horizontal/vertical levelling Yes
• Hand receiver mode Yes
• Scan mode Yes
• Spot mode Yes
• Precision sensor levelling Yes
• Manual slope function Yes
• Battery and mains operation Yes
• Anti-Drift-System (ADS) Yes
• Tilt warning function Yes
• Self-Levelling Range ± 4°
• Accuracy ±0.15 mm/m
• Levelling Automatic horizontal / vertical levelling with electronic levels and motors
• Laser Wavelength 635 nm
• Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Protection Class IP 66
• Power Supply Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
• Operating Time approx. 20 hours
• Battery Recharging Time approx. 4 hours
• Operating Conditions -10°C … 50°C
• Storage Conditions -10°C … 70°C
• Dimensions (W x H x D) 130 mm x 160 mm x 145 mm
• Weight 1300g

• 1 x Laserliner 052.205A Cubus 210 S Set Rotary Laser Kit, 1500mm
• 1 x SensoLite 210
• 1 x Light-weight tripod 150 cm
• 1 x Tripod/wall bracket
• 1 x Universal mount
• 1 x Telescopic levelling staff LT 4 m
• 1 x Remote control
• 1 x HighCapacityPack (Li-Ion)
• 1 xBatteries
• 1 x Network/charging device incl. international adapter
• 1 x Carrying strap
• 1 x Carrying case
