SWP Sumner Big Vee Jack with Vee Head

Description

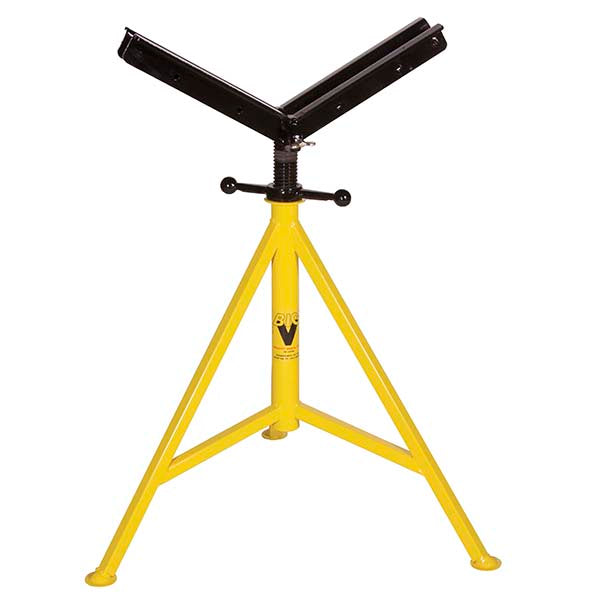

Sumner Big Vee Jack with Vee Head

The Sumner Big Vee Jack is ideal for fabricators of large diameter pipes. With a wider base, 45mm Acme adjustment screw and greater load capacity, the Big Vee is the ideal stand for this application. The heavy duty 3-leg stand is built tough enough for the demands

of larger pipes.

• Heavy duty 25mm square leg tubing can support
• Quick and precise height adjustment
• 1135kg loads
• Wide base for extra stability
• Takes up to 914mm diameter pipe
• Optional roller wheels
• Weight: 16.4kg
• Specifications
• Load Capacity: 1135kg
• Basic Unit Height: 902mm
• Basic Unit Width: 749mm
• Vee-Head Height Min: 749mm
• Vee-Head Height Max: 1041mm
