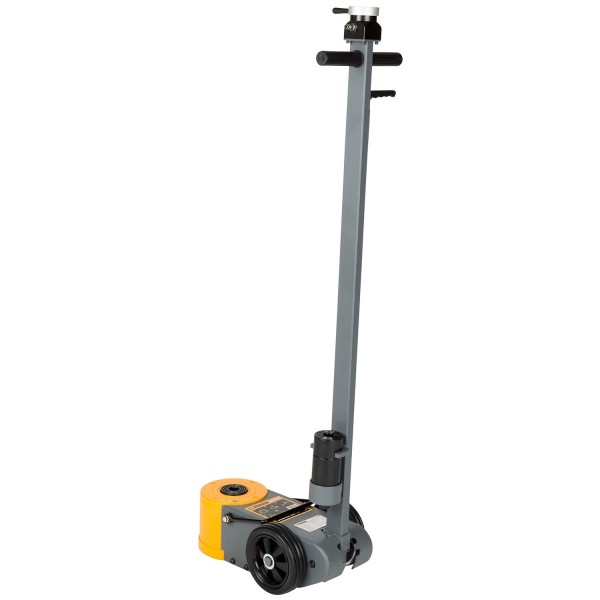

WINNTEC 32/16 TON Air Service Jack (09893S)

The WINNTEC® from SIP 32/16 Ton Air Service Jack is designed for high performance, ascending and descending safely with air which, when combined with chromed pistons and ram, offers reliable lifting of larger, heavier, and more demanding vehicles.

Suitable for a range of demanding lifting in garages and workshops.

KEY FEATURES:

• 150mm to 289mm lifting height range
• Dual-stage telescopic hydraulic lifting system
• Safely ascends and descends with air for ease-of-use
• Wheel-mounted with long handle for simple positioning
• WINNTEC® from SIP 3-Year Warranty

Technical Information:

• ITEM NO. 09893
• Weight Capacity: 32 / 16 TON
• Min. Lifting Height: 150mm
• Max. Lifting Height: 289mm
• Screw Extension: Optional
• Supplied Extensions: 45mm / 100mm
• Air Consumption: 10.6CFM (300ltr/min)
• No. of Stages: 2 stages
• Handle Length: 1300mm
• Jack Length: 480mm
• Jack Width: 290mm
• Base Height: 150mm
• Net Weight: 35.00kg

                                    7.00kg

• Gross Weight 35.30kg

                                            9.00kg

• Product Dimensions:
• Packaged Dimensions 200(H) x 510(W) x 290mm(D)
• 100(H) x 1400(W) x 290mm(D)
