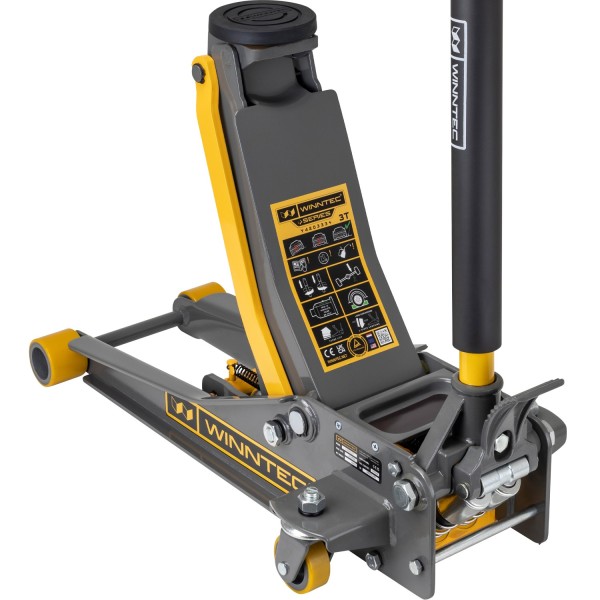

WINNTEC® +SERIES 3 Ton Low-Profile Trolley Jack (09714S)

The WINNTEC® +SERIES 3 Ton Turbo Lifter Low-Profile Trolley Jack is a high-performance hydraulic jack engineered for professional automotive garages and workshops, mobile service vans and general vehicle maintenance operations.

A low-profile chassis provides access under reduced clearance vehicles, while the Turbo Lifter™ twin-piston pump delivers rapid approach to the load point with minimal handle strokes. Two-Speed Lowering™ enables controlled descent under varying load conditions.

An enhanced +SERIES hydraulic power unit and robot-welded steel design ensures long-term stability and wear resistance. Supported by a World Exclusive 5-Year Warranty.

KEY FEATURES:

• Low-profile design with 503mm max. lift height and 76mm min. saddle height
• Turbo Lifter™ twin-piston pump for accelerated no-load lift and reduced user effort
• Two-Speed Lowering™ system for smooth, precise load-sensitive controlled descent
• +SERIES hydraulic power unit with chromed components and extended-life seals
• Robot-welded with PU wheels for high structural strength and fatigue resistance
• Engineered for durability and supported by a World Exclusive 5-Year Warranty

Technical Information:

• ITEM NO. 09714
• Max. Lifting Capacity: 3 Ton
• Max. Lifting Height: 503mm
• Min. Saddle Height: 76mm
• Jack Length: 672mm
• Jack Width: 346mm
• Net Weight: 36kg
• Gross Weight: 38kg
• Product Dimensions: 1300(H) x 346(W) x 672mm(D)
• Packaged Dimensions: 195(H) x 400(W) x 805mm(D)
