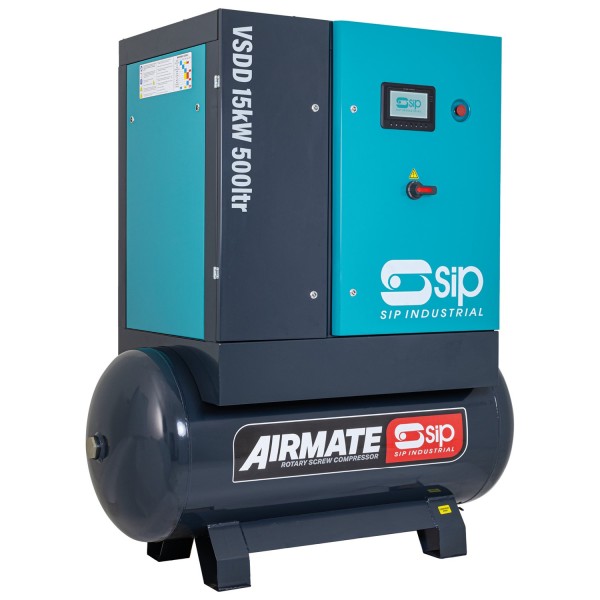

SIP VSDD 15kW 8bar 500ltr Screw Compressor (08263S)

The SIP VSDD 15kW 8bar 500ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.

With a motor output of 15kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 500ltr receiver tank.

KEY FEATURES:

• Direct drive transmission for improved power transfer
• Variable speed 15kW motor delivers even power distribution
• Heavy-duty silenced cabinet ensures reduced noise operation
• Colour touchscreen for real-time diagnostic information
• Easy access cabinet panel for maintenance and service
• All-in-one design minimises lost work area space

Technical Information:

• ITEM NO. 08263
• Input Supply 400v (64A)
• Rated Input: 18kW
• Motor Power: 15kW (20hp)
• IE4 Motor: Yes
• Max. Pressure: 116psi (8bar)
• Free Air Delivery (FAD): 75CFM (2123ltr/min)
• Receiver Size: 500ltr
• Cooling Type: Fan Cooled
• Transmission Type: Direct Drive
• Start-Up Mode: Inverter Soft Start
• Refrigerated Dryer: N/A
• Outlet Connector: 3/4" BSPP
• Noise Level: 62dB(A)
• Net Weight: 445.00kg
• Gross Weight:
• Product Dimensions: 1750(H) x 820(W) x 1880mm(D)
