Laserliner 082.277A VideoInspector 3D Micro Professional Video Inspection System - 3,9 mm; 1 m (32070)

Product Description:

The professional video inspection system with extremely compact camera head is ideal for precise visual inspections of small openings, for example in motor vehicles or machines. The watertight, movable camera head can be optimally adjusted for the location using the 3D control. Thanks to the object illumination with six high-performance ceramic LEDs, clear images can be achieved even under the worst conditions. The high-contrast TFT display rotates the image in 90° steps. The REC function can be used to record still images and videos for later analysis. Supplied with battery pack, magnetic bracket, USB charging cable, 8 GB micro-SD card, card reader, screwdriver and carrying case.

• Extremely small camera head diameter – perfect for small openings
• Supplied with battery pack, magnetic bracket, USB charging cable, 8 GB micro-SD card, card reader, screwdriver and carrying case
• Easy problem localisation behind or in objects, walls, pipes, cavities
• Clear images even under the worst conditions
• Manual 3D control of titanium camera head which moves through max. 160°
• Sturdy, durable adjustment mechanism
• Powerful object lighting thanks to 6 high-performance ceramic LEDs
• Image rotation in 90° increments
• Image and video REC function on SDHC memory card
• High-grade, long-life flexible tungsten tubing

Specifications:

• Live display Yes
• External image/video output Yes
• Image/video recording Yes
• Image/video playback Yes
• Digital zoom Yes
• Controllable camera head Yes
• Time stamp Yes
• Image alignment Yes
• Data transfer Yes
• Diameter Camera Head 3.9 mm
• Camera Resolution 960 x 720 pixels
• Field of View (FOV) 120°
• Depth of Focus (DOF) 0,5 … 10 cm
• Screen Type 3,5" TFT display
• Display Resolution 640 x 480 pixels
• Image Format JPEG
• Length of Probe 1 m
• Illumination 10 brightness levels
• Digital Zoom 10 zoom levels
• Memory Micro-SD memory card up to 8 GB
• Ports Micro USB Power supply 5V / DC
• Dimensions (W x H x D) 115 mm x 190 mm x 115 mm
• Weight 625g

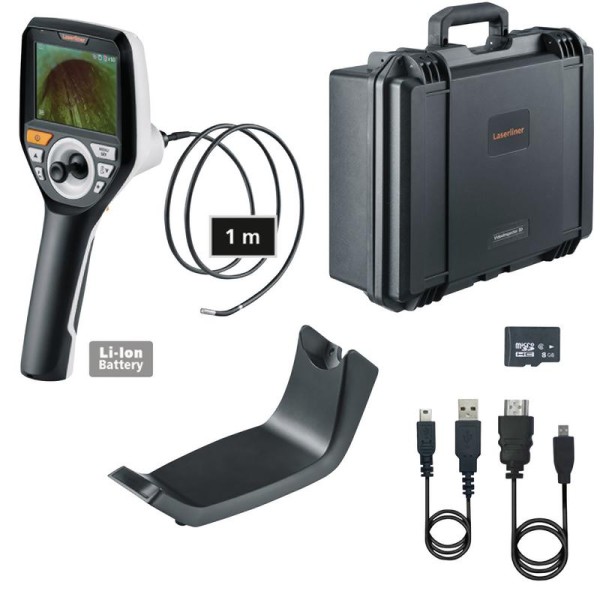

• 1 x Laserliner 082.277A VideoInspector 3D Micro Professional Video Inspection System (3,9 mm; 1 m)
• 1 x InspectorCamera 3D Micro
• 1 x Li-ion battery pack
• 1 x Magnetic bracket
• 1 x USB charging cable
• 1 x 8 GB micro SD card
• 1 x Card Reader
• 1 x Screwdriver
• 1 x Carrying case
