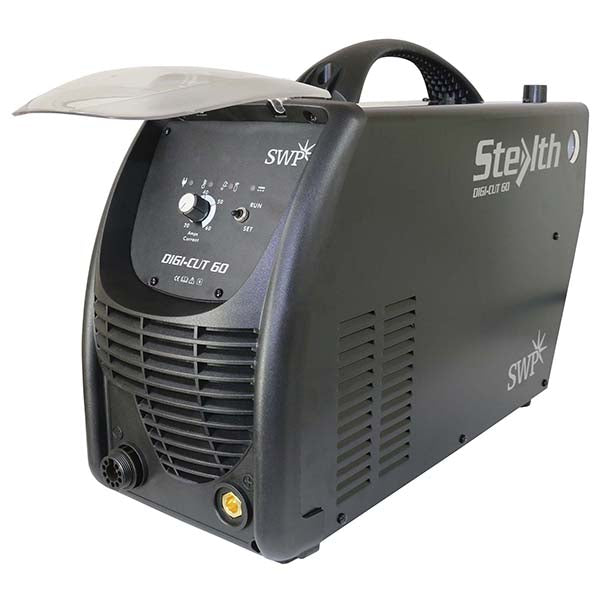

SWP Stealth Digi-Cut 60 240V Plasma Cutting Machine

Description

Introducing the Stealth Digi-Cut 60 Plasma Cutting Machine, designed with a lightweight profile to provide effortless portability. Achieving professional results is easy with contact arc striking and an air pressure regulator included. Enjoy precise and detailed plasma cutting today.

• Lightweight
• Auto over voltage, over temperature, and over current protection
• Includes air pressure regulator
• Contact arc striking
• PC7100H Plasma torch included
• BA55/270BS3 Recommended compressor at 100% Duty Cycle
• Generator friendly

Specifications

• Input power voltage (V): 230±10%
• Frequency (Hz): 50/60
• Effective input current (A): 40
• Maximum (kVA): 9.5
• Current adjustment range (A): 20-60
• Maximum no-load voltage (V): 400
• Duty cycle (A) (40°C 10 min): 95%@60 | 100%@58
• Severance cut for carbon steel (mm): ≤35
• Production cut for carbon steel (mm): ≤25
• Production cut for stainless steel (mm): ≤25
• Production cut for aluminium (mm): ≤20
• Production cut for copper (mm): ≤14
• Air operating pressure (psi): 50-90 (3.5-6bar)
• Air operating flow (l/min): 160 (5.65 cfm)
• Protection class: Ip23
• Insulation class: H
• Cooling: Air
• Overall dimensions (mm): 650 x 243 x 445
• Weight (kg): 23
• Accessories included: 3m earth return lead, 3m gas hose

Standards

• EN 60974/1
