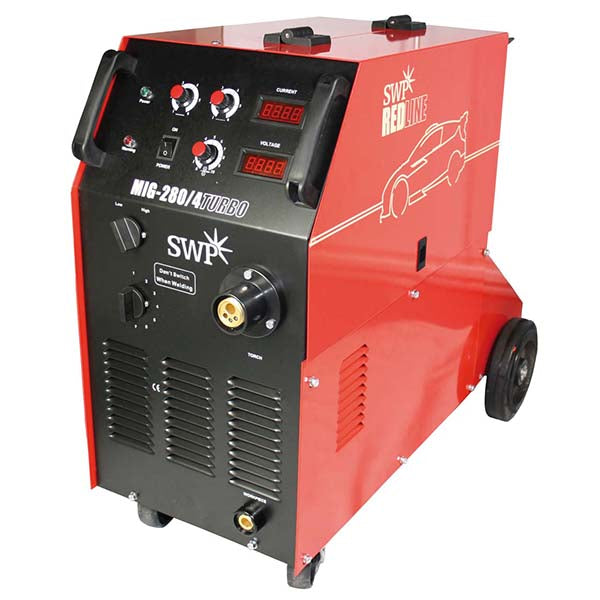

SWP RedLine MIG 280/4 Single Phase Turbo Automotive MIG Welding Machine

Description

This powerful, single phase, compact welding machine is supplied with a 4-roll drive feed system and is ideal for light to medium fabrication.

• Robust motor and gearbox
• Digital amp and voltmeter
• Low spatter transformer design
• Spot and stitch timer
• Slope down for crater fill
• Fan cooled for efficiency
• Will support full size gas cylinder
• M25-3 torch and 2068 regulator included
• 16 Steps
• Supplied with 0.6-0.8mm and 1-1.2mm guide rollers
• 2 year Warranty

Specifications

• Mains connection (V): 1-230 50/60
• Minimum fuse rating (A): 32
• Welding current (A): 40-280
• Voltage steps: 16
• Maximum no load voltage (V): 40
• Protection: Ip21
• Output current (A): 200
• Welding voltage range (V): 16-24
• Maximum (kva): 7.6
• Duty cycle (A): 40%@200 | 100%@130
• Insulation class: F
• Spool size (kg): 5-15
• Welding wire diameter (mm): 0.6-1.2
• Overall dimensions (mm): 910 x 470 x 790
• Weight (kg): 60

Standards

• EN 60974/1
