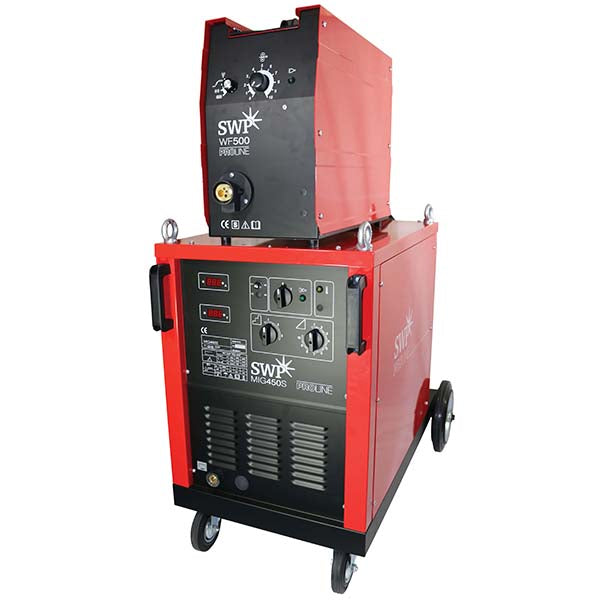

SWP ProLine MIG 450S 415V Three Phase Air Cooled MIG Welding Machine + WF500/4 Separate Wire Feeder

Description

The MIG 450S + WF500/4 is one of SWP’s flagship products and offers second-to-none levels of performance for heavy fabrication work. It is a robust three phase machine and only requires a 25A fuse. Its full size cabinet can accept a full height gas cylinder and its large diameter wheels means it can be moved from job to job with little risk of toppling. The WF500/4 features SWP’s renowned all-geared drive system, thus minimising the risk of wire slip and making welds uniform. With its 5 metre interconnections and 4 metre welding torch, this gives a working radius of 9 metres. The unit is also suitable for use with spool or push-pull guns, to allow for increased work radius up to 13 metres.

• Lifting eye bolts
• Copper wound transformer and choke
• Forced air fan cooling
• Digital volt and amp meter
• Overload warning indicator
• Heavy duty front and rear wheels
• All geared 4-roll metal cast feed system
• Support strap for gas cylinder
• Infinitely variable wire speed
• Spot weld timer
• 2 step/4step latch facility
• Burnback control
• Gas purge
• Inch button
• Soft arc technology
• M36-3 torch and 2068 regulator included

Spare Parts

• Mounting post and wheels available for wire feed unit
• W111440 - 5m interconnection cable assembly
• W040470 - WF400 wire feed unit

Specifications

• MIG 450S Specifications
• Mains connection (V): 3-415
• Minimum fuse rating (A): 25
• Welding current (A): 50-450
• Voltage steps: 30
• Duty cycle (A): 35%@450| 60%@420| 100%@310
• Overall dimensions (mm): 920 x 500 x 780
• Weight (kg): 168
• WF500/4 Specifications
• Power max (W): 100
• Input voltage (AC): 42
• Wire speed (m/min): 1-22
• Welding wire diameter (mm): 0.8-2.4
• Overall dimensions (mm): 570 x 215 x 420
• Weight (kg): 19

Standards

• EN 60974/1
