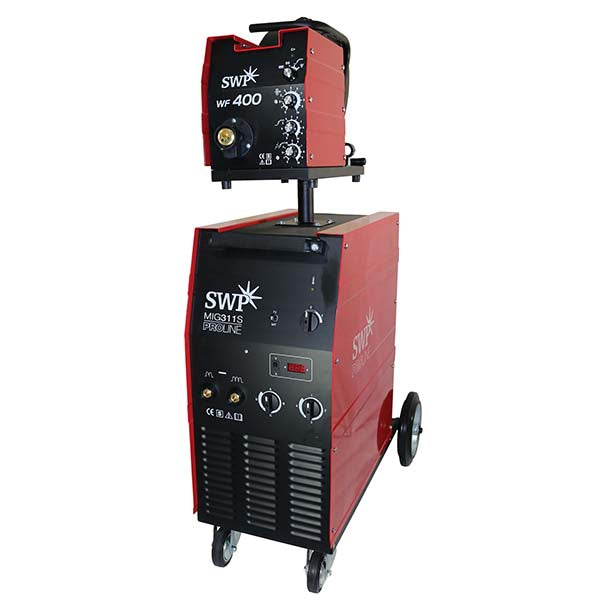

SWP ProLine MIG 311S 240V Single Phase MIG Welding Machine + WF400 Separate Wire Feeder

Description

The MIG 311S + WF400 is a versatile and robust single phase machine with a separate wire feed unit, ideally suited to automotive and light to medium industrial applications in the workshop or on site. On maximum power and maximum duty cycle, the MIG 311S consumes only 12kVA, requiring only a 35A fuse and can be used in the field from a 15kVA generator. Its full size cabinet can accept a full height gas cylinder and the large diameter wheels mean it can be moved from job to job with little risk of toppling. The separate 4-roll wire feed unit (the WF400) features an all-geared drive system, minimising the risk of wire slip to create uniform welds.

• Copper wound transformer and choke
• Forced air fan cooling
• Digital volt and amp meter
• Overload warning indicator
• Heavy duty front and rear wheels
• All geared 4-roll metal cast feed system
• Double support straps for gas cylinder
• Infinitely variable wire speed
• Spot weld timer
• 2 step/4step latch facility
• Burnback control
• Gas purge
• Inch button
• Soft arc technology
• M25-3 torch and 2068 regulator included

Spare Parts

• Mounting post and wheels available for wire feed unit
• W111440 - 5m interconnection cable assembly
• W040478 - WF400 wire feed unit

Specifications

• MIG 311S Specifications
• Mains connection (V): 1-230
• Minimum fuse rating (A): 35
• Welding current (A): 30-310
• Voltage steps: 16
• Duty cycle (A): 40%@300| 60%@210| 100%@160
• OCV: 15.8-37.9
• Overall dimensions (mm): 800 x 492 x 840
• Weight (kg): 100
• WF400 Specifications
• Power max (W): 60
• Input voltage (AC): 42VA
• Wire speed (m/min): 1-20
• Welding wire diameter (mm): 0.6-1.6
• Overall dimensions (mm): 865 x 490 x 1360
• Weight (kg): 20

Standards

• EN 60974/1
