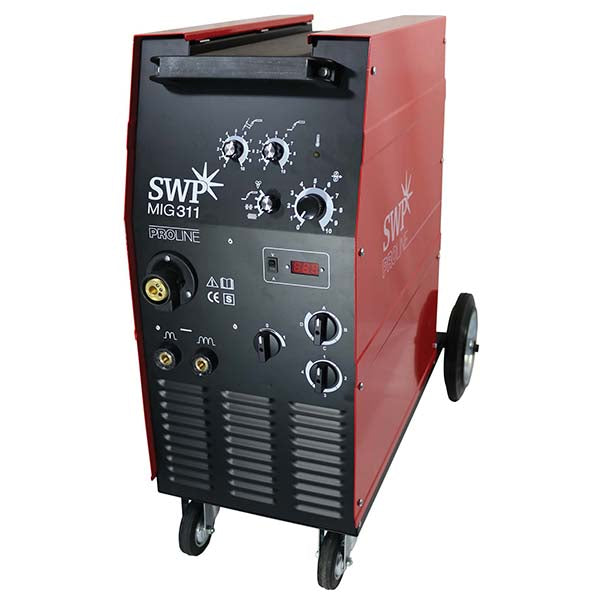

SWP ProLine MIG 311 240V Single Phase MIG Welding Machine

Description

The MIG 311 4-Roll Compact is a versatile and robust single phase welding machine ideally suited to light, medium and heavy fabrication. This welding machine consumes only 12kVA and requires only a 35A fuse and can be used in the field from a 15kVA generator. The Mig 311 is also suitable for use with spool-on or push-pull guns, which allow for increased work radius up to 8 metres and has the ability to take larger diameter wire than lower power units, offering thicker plate welding.

• Large cabinets can accept full height gas cylinder
• Heavy duty front and rear wheels for increased stability
• Digital volt and amp meter
• Copper wound transformer and choke
• Forced air fan cooling
• Overload warning indicator
• Heavy duty front and rear wheels
• All geared 4-roll metal cast feed system
• Double support straps for gas cylinder
• Infinitely variable wire speed
• Spot weld timer
• 2step/4step latch facility
• Burnback control
• Gas purge
• Soft arc technology
• M25-3 torch and 2068 regulator included
• Torch holder included (W105)

Specifications

• Mains connection (V): 1-230
• Minimum fuse rating (A): 35
• Welding current (A): 30-310
• Voltage steps: 16
• Duty cycle (A): 40%@300 | 60%@210 | 100%@160
• Welding wire diameter (mm): 0.8-1.2
• Overall dimensions (mm): 880 x 490 x 870
• Weight (kg): 100

Standards

• EN 60974/1
