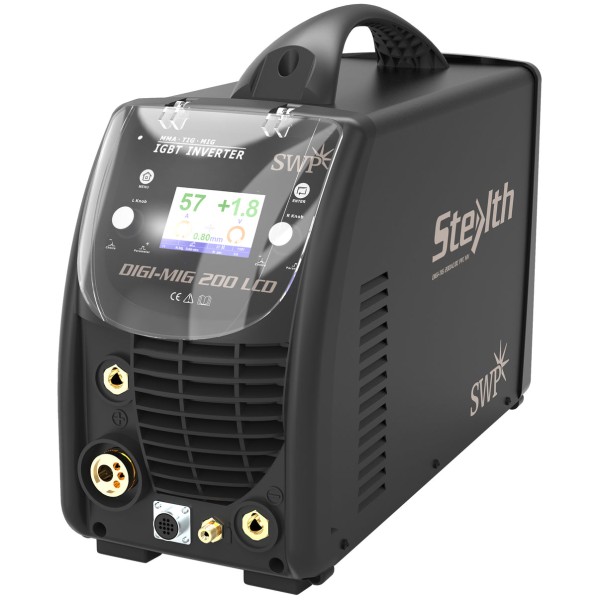

SWP Stealth Digi-Mig 200 LCD PFC Multiprocess 110V/230V MIG Welding Machine

The Stealth Digi-Mig 200 LCD PFC welding machine features an LCD display with 260,000 true colours and a power factor of more than 0.99. It offers multiple advantages such as improved energy efficiency and a wider input voltage range, and is equipped with temperature, voltage, and current sensors for high protection. It can load up to 5kg spool and has waveform control for an even more stable arc. Also included is the brand's M25-3 torch and the 2068 regulator for safe and convenient welding.

• LCD displays 260,000 true colours
• Power factor more than 0.99
• Multiple advantages such as energy saving and wider input voltage
• Works with 110V and 230V
• Capable of loading up to 5kg spool
• Waveform control for added stability of the arc - even at low currents
• Equipped with temperature, voltage and current sensors for high protection
• M25-3 torch and 2068 regulator included
•


Specifications

• Input power voltage (V): 110/230±10%
• Frequency (Hz): 50/60
• Effective current - 110V MIG: 23.4 | TIG: 17.7 | MMA 17.7
• Effective current - 230V MIG: 17.7 | TIG: 13.9 | MMA: 20.2
• Rated input current (A) 110V MIG: 37 | TIG: 28 | MMA: 28
• Rated input current (A) 230V MIG: 28 | TIG: 22 | MMA: 32
• Duty cycle (A) (40°C 10 min) MIG: 40%@140 | 60%@115 | 100%@90
• Duty cycle (A) (40°C 10 min) TIG: 40%@100 | 60%@85 | 100%@65
• Duty cycle (A) (40°C 10 min) MMA: 40%@200 | 60%@165 | 100%@130
• No load voltage - limited (V): 67 (MIG) 14 (TIG/MMA)
• Welding current range (A): 25-140 (MIG 110V) | 25-200A (MIG 230V)
• Welding voltage range (V): 10-21 (MIG 110V) | 10-27V (MIG 230V)
• Efficiency (%): 80
• Power factor: 0.99
• Insulation class: H
• Protection class: Ip23
• Cooling: Air
• Overall dimensions (mm): 560 x 220 x 410
• Weight (kg): 15.5
• Accessories included: 3m Argon hose, 3m earth return lead

Standards

• EN 60974/1
