Product Code: 34023
No-volt switch

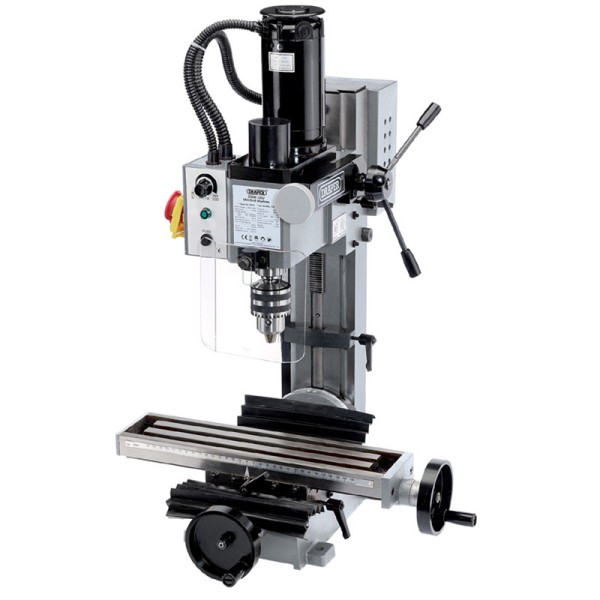

Precision metal working lathe, incorporated with a powerful 350W motor delivering excellent power output capable of handling most materials. The milling/drilling machine encompasses a working table with T slots, which enables clamping and securement of work. Each milling/drilling machine is fitted with metric graduated compound scales, column tilt feature (0-45°), a front mounted NVR switch and finely tuned 3-plane adjustment table. All these features make for an excellent milling/drilling machine, ideal for small industrial units.
| VAT Rated At: | 20.00% |
| Barcode: | 5010559340231 |
| Outer Box Qty | 1 |
| Weight | 59.000kgs |
View product in our catalogue: Page 562
Drilling capacity ... 19mm
Face milling capacity ... 30mm
End milling capacity ... 16mm
Headstock travel ... 180mm
Cross axis ... 100mm
Longitudinal axis ... 220mm
Spindle tilt axis ... ±0-45°
Spindle taper ... MT3
Spindle speeds
- low ... 100-1100r/min
- high ... 100-2500r/min
T-slot ... 12mm
Throat depth ... 170mm
Table size ... 390 x 92mm
Weight ... 66kg
The Draper range is our standard Draper product, suitable for trades and the enthusiast. Manufactured with quality in mind and comes with our guarantee.
